Cross-Bank Inline Hole Punching System or Serrating Systems CB-250/CB-250S

The Cross-Bank system is designed to be mounted in-line with a converting bag machine. It uses pressurized air to propel air cylinders attached to an assembly of punches or blades that perforate the film. The system is controlled by an electrical pulse signal from the bag machine.

Features

  • Air-operated hold-down brackets and gear positioning available as optional features.
  • Can be adapted to virtually any intermittent bag-making machine.
  • Accommodates different punch diameters without requiring additional accessories.
  • Punches or blades can be positioned at any desired distance across the bag machine to maintain the integrity of printed images.

Optional Equipment

  • Holding adjustable sub-frame.
  • Air-operated clamping device.
  • Knock-out collecting vacuum pan for cleaner operation.

This punching or serrating Cross-Bank system is designed for flexibility, precision, and efficient in-line operation on converting bag machines.

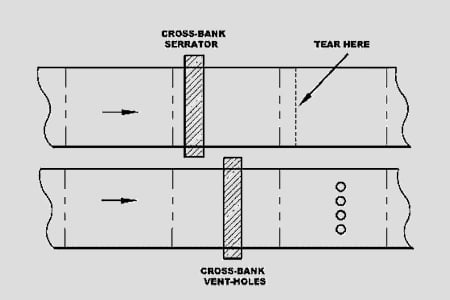

cross bank serrator
